Grip Ring For Shaft Without Groove

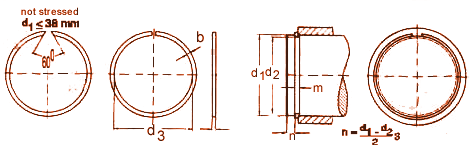

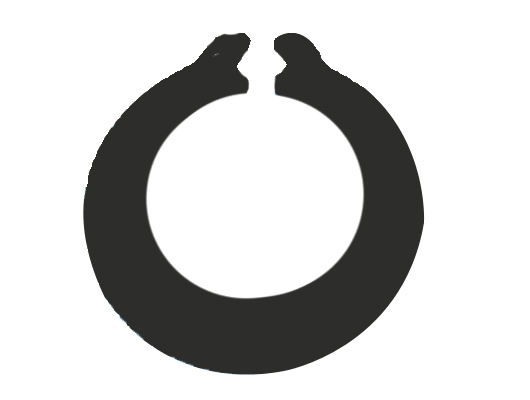

GRIP RING FOR SHAFT WITHOUT GROOVE

DIN: 5555

Nominal dimension

RING

Shaft dia
d1
h 11

  s
d3
a
~
b
~
d5
Weight
(kg /1,000)
Max.load
  (kg)
1.5
0.40
1.40
1.7
0.7
0.9
0.02
4.0
2.0
0.60
1.90
1.7
1.0
0.9
0.03
5.0
2.5
0.60
2.35
1.7
1.2
0.9
0.04
6.0
3.0
0.60
2.85
1.9
1.4
0.9
0.05
7.5
3.5
0.60
3.30
2.1
1.6
0.9
0.08
9.0
4.0
0.80
3.80
2.7
1.8
1.3
0.17
10.0
4.5
0.80
4.25
3.0
2.0
1.3
0.22
12.0
5.0
0.80
4.75
2.6
2.2
1.3
0.26
13.0
6.0
1.00
5.70
3.0
2.5
1.3
0.38
17.0
7.0
1.00
6.70
3.2
2.8
1.3
0.48
18.0
8.0
1.20
7.70
3.3
3.0
1.3
0.55
20.0
9.0
1.20
8.65
3.0
3.3
1.5
0.75
23.0
10.0
1.20
9.65
3.0
3.5
1.5
0.96
25.0
11.0
1.20
10.60
3.6
4.2
1.7
1.25
28.0
12.0
1.20
11.60
3.6
4.7
1.7
1.50
30.0
13.0
1.20
12.55
4.0
5.0
1.7
1.80
32.0
13.8
1.50
13.30
4.6
5.4
2.0
2.65
35.0
14.0
1.50
13.50
4.6
5.4
2.0
2.60
35.0
15.0
1.50
14.50
4.8
5.7
2.0
2.80
40.0
16.0
1.50
15.40
4.9
5.9
2.0
3.20
50.0
17.0
1.75
16.35
6.0
6.3
2.5
4.80
60.0
18.0
1.75
17.30
6.0
6.7
2.5
5.20
70.0
20.0
1.75
19.30
6.0
7.1
2.5
6.00
75.0
22.0
1.75
21.20
6.0
7.4
2.5
6.50
80.0
24.0
1.75
23.15
6.5
7.8
2.5
6.80
85.0
25.0
1.75
24.15
6.5
8.2
2.5
7.00
90.0
