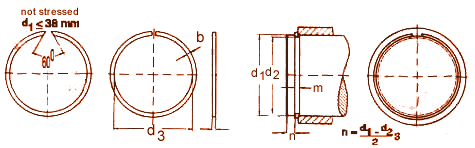

SNAP RING FOR HOUSING BORES                DIN 5417
SNAP RING FOR HOUSING BORES
Nominal
dimension

RINGS
GROOVE
Nominal                  Dimension
RING
GROOVE
Housing
dia.d1
d3
Min.
b
-0.1
s
-0.1
d2
Toler- ance

Housing
dia. d1
d3
min.
b
-0.1
s
-0.1
d2
Toler- ance
7
7.5
1.00
0.8
7.3
+0.09
86
88.6
2.80
2.0
87.8
+0.22
8
8.5
1.00
0.8
8.3
+0.09
88
91.0
3.40
2.5
90.0
+0.22
9
9.5
1.10
0.8
9.3
+0.09
90
93.0
3.40
2.5
92.0
+0.22
10
10.6
1.20
0.8
10.4
+0.11
92
95.0
3.40
2.5
94.0
+0.22
11
11.6
1.30
1.0
11.4
+0.11
93
96.0
3.40
2.5
95.0
+0.22
12
12.7
1.30
1.0
12.4
+0.11
95
98.0
3.40
2.5
97.0
+0.22
13
13.8
1.30
1.0
13.5
+0.11
97
100.0
3.40
2.5
99.0
+0.22
14
14.8
1.30
1.0
14.5
+0.11
98
101.0
3.40
2.5
100.0
+0.22
15
15.8
1.30
1.0
15.5
+0.11
100
103.0
3.40
2.5
102.0
+0.22
16
16.8
1.60
1.2
16.5
+0.11
102
105.3
3.40
2.5
104.3
+0.22
17
17.8
1.70
1.2
17.5
+0.11
103
106.3
3.40
2.5
105.3
+0.22
18
18.9
1.75
1.2
18.5
+0.13
105
108.3
3.40
2.5
107.3
+0.22
19
19.9
1.75
1.2
19.6
+0.13
107
110.3
3.40
2.5
109.3
+0.22
20
21.0
1.75
1.2
20.6
+0.13
108
111.3
3.40
2.5
110.3
+0.22
21
22.0
1.75
1.2
21.6
+0.13
110
113.3
3.40
2.5
112.3
+0.22
22
23.0
1.75
1.2
22.6
+0.13
112
115.3
3.40
2.5
114.3
+0.22
23
24.0
1.75
1.2
23.6
+0.13
113
116.3
3.40
2.5
115.3
+0.22
24
25.2
1.75
1.2
24.8
+0.13
115
118.3
3.40
2.5
117.3
+0.22
25
26.2
1.75
1.2
25.8
+0.13
117
120.3
3.40
2.5
119.3
+0.22
26
27.2
1.75
1.2
26.8
+0.13
118
121.3
3.40
2.5
120.3
+0.25
27
28.2
1.75
1.2
27.8
+0.13
120
123.3
3.40
2.5
122.3
+0.25
28
29.2
1.75
1.2
28.8
+0.13
123
126.3
3.40
2.5
125.3
+0.25
29
30.2
1.75
1.2
29.8
+0.13
125
128.3
3.40
2.5
127.3
+0.25
30
31.4
2.30
1.5
31.0
+0.16
127
130.3
3.40
2.5
129.3
+0.25
31
32.4
2.30
1.5
32.0
+0.16
130
133.3
3.40
2.5
132.3
+0.25
32
33.4
2.30
1.5
33.0
+0.16
133
136.3
3.40
2.5
135.3
+0.25
33
34.4
2.30
1.5
34.0
+0.16
135
138.3
3.40
2.5
137.3
+0.25
34
35.4
2.30
1.5
35.0
+0.16
137
140.3
3.40
2.5
139.3
+0.25
35
36.4
2.30
1.5
36.0
+0.16
140
143.6
4.00
2.5
142.6
+0.25
37
38.8
2.30
1.5
38.2
+0.16
143
146.6
4.00
2.5
145.6
+0.25
38
39.8
2.30
1.5
39.2
+0.16
150
153.6
4.00
2.5
152.6
+0.25
39
40.8
2.30
1.5
40.2
+0.16
153
156.6
4.00
2.5
155.6
+0.25
40
41.8
2.30
1.5
41.2
+0.16
160
163.6
4.00
2.5
162.6
+0.25
42
43.8
2.30
1.5
43.2
+0.16
163
166.6
4.00
2.5
165.6
+0.25
43
44.8
2.30
1.5
44.2
+0.16
165
168.6
4.00
2.5
167.6
+0.25
44
45.8
2.30
1.5
45.2
+0.16
170
173.6
4.00
2.5
172.6
+0.25
45
46.8
2.30
1.5
46.2
+0.16
173
176.6
4.00
2.5
175.6
+0.25
46
47.8
2.30
1.5
47.2
+0.16
175
178.6
4.00
2.5
177.6
+0.25
47
48.8
2.30
1.5
48.2
+0.16
180
183.6
4.00
2.5
182.6
+0.29
48
49.8
2.30
1.5
49.2
+0.16
183
186.6
4.00
2.5
185.6
+0.29
50
51.8
2.30
1.5
51.2
+0.19
190
194.5
5.00
3.00
193.0
+0.29
52
54.3
2.30
1.5
53.5
+0.19
195
199.5
5.00
3.00
198.0
+0.29
53
55.3
2.30
1.5
54.5
+0.19
200
204.5
5.00
3.00
203.0
+0.29
55
57.3
2.30
1.5
56.5
+0.19
205
209.5
5.00
3.00
208.0
+0.29
57
59.3
2.30
1.5
58.5
+0.19
215
219.5
5.00
3.00
218.0
+0.29
58
60.3
2.30
1.5
59.5
+0.19
220
224.5
5.00
3.00
223.0
+0.29
60
62.3
2.30
1.5
61.5
+0.19
225
229.5
5.00
3.00
228.0
+0.29
62
64.3
2.30
1.5
63.5
+0.19
230
234.5
5.00
3.00
233.0
+0.29
63
65.3
2.30
1.5
64.5
+0.19
240
244.5
5.00
3.00
243.0
+0.29
65
67.3
2.30
1.5
66.5
+0.19
250
254.5
5.00
3.00
253.0
+0.32
68
70.3
2.30
1.5
69.5
+0.19
270
277.0
7.50
4.00
275.0
+0.32
70
72.3
2.30
1.5
71.5
+0.19
280
287.0
7.50
4.00
285.0
+0.32
72
74.6
2.80
2.0
73.8
+0.19
300
307.0
7.50
4.00
305.0
+0.32
73
75.6
2.80
2.0
74.8
+0.19
320
327.0
7.50
4.00
325.0
+0.36
74
76.6
2.80
2.0
75.8
+0.19
325
332.0
7.50
4.00
330.0
+0.36
76
78.6
2.80
2.0
77.8
+0.19
350
357.0
7.50
4.00
355.0
+0.36
78
80.6
2.80
2.0
79.8
+0.19
355
362.0
7.50
4.00
360.0
+0.36
79
81.6
2.80
2.0
80.8
+0.19
375
382.0
7.50
4.00
380.0
+0.36
80
82.6
2.80
2.0
81.8
+0.22
380
387.0
7.50
4.00
385.0
+0.36
81
83.6
2.80
2.0
82.8
+0.22
395
402.0
7.50
4.00
400.0
+0.36
82
84.6
2.80
2.0
83.8
+0.22
400
407.0
7.50
4.00
405.0
+0.40
83
85.6
2.80
2.0
84.8
+0.22
415
422.0
7.50
4.00
420.0
+0.40
85
87.6
2.80
2.0
86.8
+0.22
420
427.0
7.50
4.00
425.0
+0.40
-
-
-
-
-
-
440
447.0
7.50
4.00
445.0
+0.40
