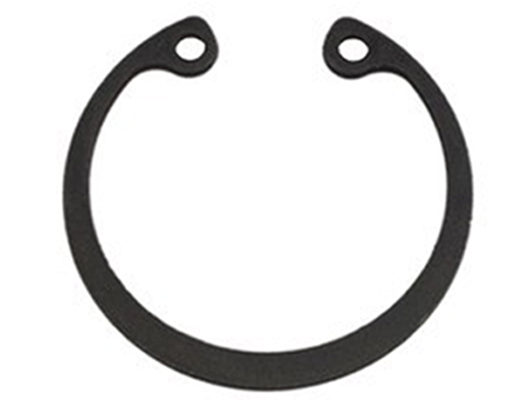

INDICATIVE NUMBER - DIN 472

APPLICATIONS :
Mechanical Engineering, Automotive Engineering, Gear Systems,Gear Boxes, Electrical engineering, Precision mechanics, Apparatus engineering, In spline shafts etc.

DIN 472

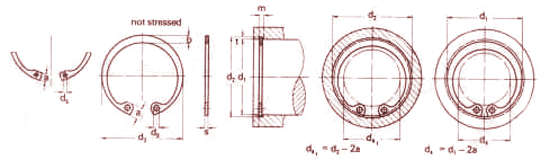

Nominal dimension	RING							GROOVE
Shaft dia.  d1	s  h 11	d3	Tolerance	a  Max	b  ~	d4  Expanded	d5	d2	Tolerance	M  H13	Axial Force  kgf.
20	-	21.5	-	4.5	2.4	10	-	21	-	-	805
22	-	23.5	-	4.7	2.8	11.6	-	23	-	-	882
24	-	25.9	+0.42	4.9	3	13.2	-	25.2	-	-	1 160
25	-	26.9	-0.21	5	3.1	14	-	26.2	-	1.6	1 200
26	1.5	27.9	-	5.1	-	14.8	2	27.2	-	-	1 250
-	-	-	-	-	-	-	-	-	-	-	-
28	1.75	30.1	-	5.3	3.2	16.4	-	29.4	-	1.85	1 580
30	-	32.1	-	5.5	3.3	18	-	31.4	-	-	1 690
32	-	34.4	+0.50	5.7	3.4	19.6	-	33.7	-	-	2 200
34	-	36.5	-0.25	5.9	3.7	21.2	-	35.7	-	-	2 320
35	-	37.8	-	6	3.8	22	-	37	-	-	2 820
-	-	-	-	-	-	-	-	-	-	-	-
37	-	39.8	-	6.2	3.9	23.6	-	39	-	-	2 980
38	-	40.8	+0.78	6.3	-	24.4	-	40	-	-	3 070
40	-	43.5	-0.39	6.5	-	26	-	42.5	-	2.15	4 050
42	2	45.5	-	6.7	4.1	27.6	2.5	44.5	-	-	4 250
45	-	48.5	-	7	4.3	30	-	47.5	-	-	4 520
-	-	-	-	-	-	-	-	-	-	-	-
47	-	50.5	-	7.2	4.4	31.6	-	49.5	-	-	4 720
50	2.5	54.2	+0.92	7.5	4.6	34	-	53	-	-	6 070
52	-	56.2	-0.46	7.7	4.7	35.6	-	55	-	2.65	6 300
55	-	59.2	-	8	5	38	-	58	H12	-	6 650
60	-	64.2	-	8.5	5.4	42	-	63	-	-	7 250
-	-	-	-	-	-	-	-	-	-	-	-
62	3	66.2	-	8.6	5.5	43.8	-	65	-	-	7 480
65	-	69.2	-	8.7	5.8	46.6	-	68	-	-	7 820
68	-	72.5	-	8.8	6.1	49.4	3	71	-	3.15	8 170
70	-	74.5	-	9.	6.2	51	-	73	-	-	8 420
72	-	76.5	-	9.2	6.4	52.6	-	75	-	-	8 650
-	-	-	-	-	-	-	-	-	-	-	-
75	4	79.5	-	9.3	6.6	55.5	-	78	-	-	9 000
80	-	85.5	-	9.5	7	60	-	83.5	-	-	11 200
85	-	90.5	-	9.7	7.2	64.6	3.5	88.5	-	4.15	11 900
90	-	95.5	+1.08	10	7.6	69	-	93.5	-	-	12 600
95	-	100.5	-0.54	10.3	8.1	73.4	-	98.5	-	-	13 300
100	-	105.5	-	10.5	8.4	78	-	103.5	-	-	14 000
