DIN 5417
Product Descriptions
Snap rings are also termed as retaining rings or retaining snap rings. They are fixed to shafts or on a Bearing Sleeve.Snap rings are available in carbon steel and Stainless Steel, but mainly in Carbon Steel. Snap rings are useful in bores and shafts. We offer snap rings in various sizes as per requirement of customer.They are also useful in assembling needle bearings. They are made up of carbon steel.
It is just a fastener which is used to hold different components and assemblies onto a shaft or in a housing or bore when it is installed in a groove.
In this case roller bearing housings can be drilled through smoothly. One more characteristic is they have short axial mounting length. These bearings are according to DIN 616
INDICATIVE NUMBER - DIN 5417
APPLICATIONS :
Engineering Industry, Bearing Manufacturing Units etc.

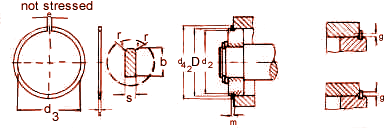

DIN 5417
Nominal dimension |
RING |
GROOVE |
||||||||||||
| Bearing Outer dia. D |
s | Toler- ance |
b | Toler- ance |
d3 | Toler- ance |
e | r min. |
Coefficient K (kg x mm) |
Weight (kg/1,000) |
d2 | Toler- ace |
m | Toler- ance |
| 30 | 1.12 | -0.1 | 3.25 | -0.15 | 27.6 | +0.2 | 3 | 0.5 | 3200 | 2.78 | 28.17 | -0.25 | 1.35 | +0.3 |
| 32 | 1.12 | -0.1 | 3.25 | -0.15 | 29.6 | +0.2 | 3 | 0.5 | 3000 | 2.98 | 30.15 | -0.25 | 1.35 | +0.3 |
| 35 | 1.12 | -0.1 | 3.25 | -0.15 | 32.5 | +0.2 | 3 | 0.5 | 2800 | 3.22 | 33.17 | -0.25 | 1.35 | +0.3 |
| 37 | 1.12 | -0.1 | 3.25 | -0.15 | 34.1 | +0.2 | 3 | 0.5 | 2660 | 3.36 | 34.77 | -0.25 | 1.35 | +0.3 |
| 40 | 1.12 | -0.1 | 3.25 | -0.15 | 37.1 | +0.2 | 3 | 0.5 | 2420 | 3.60 | 38.10 | -0.25 | 1.35 | +0.3 |
| 42 | 1.12 | -0.1 | 3.25 | -0.15 | 39.0 | +0.3 | 3 | 0.5 | 2340 | 3.75 | 39.75 | -0.25 | 1.35 | +0.3 |
| 47 | 1.12 | -0.1 | 4.04 | -0.15 | 43.7 | +0.3 | 4 | 0.5 | 2560 | 5.30 | 44.60 | -0.25 | 1.35 | +0.3 |
| 50 | 1.12 | -0.1 | 4.04 | -0.15 | 46.7 | +0.3 | 4 | 0.5 | 2430 | 5.78 | 47.60 | -0.25 | 1.35 | +0.3 |
| 52 | 1.12 | -0.1 | 4.04 | -0.15 | 48.7 | +0.3 | 4 | 0.5 | 2340 | 5.92 | 49.73 | -0.25 | 1.35 | +0.3 |
| 55 | 1.12 | -0.1 | 4.04 | -0.15 | 51.4 | +0.4 | 4 | 0.5 | 2200 | 6.17 | 52.60 | -0.25 | 1.35 | +0.3 |
| 55* | 1.70 | -0.1 | 4.04 | -0.15 | 51.4 | +0.4 | 4 | 0.5 | 7700 | 9.39 | 52.60 | -0.25 | 1.90 | +0.3 |
| 56 | 1.12 | -0.1 | 4.04 | -0.15 | 52.4 | +0.4 | 4 | 0.5 | 2180 | 6.45 | 53.60 | -0.25 | 1.35 | +0.3 |
| 58 | 1.12 | -0.1 | 4.04 | -0.15 | 54.4 | +0.4 | 4 | 0.5 | 2100 | 6.67 | 55.60 | -0.25 | 1.35 | +0.3 |
| 62 | 1.70 | -0.1 | 4.04 | -0.15 | 58.4 | +0.4 | 4 | 0.5 | 6900 | 10.50 | 59.61 | -0.25 | 1.90 | +0.3 |
| 65 | 1.70 | -0.1 | 4.04 | -0.15 | 61.4 | +0.4 | 4 | 0.5 | 6600 | 11.00 | 62.60 | -0.25 | 1.90 | +0.3 |
| 68 | 1.70 | -0.1 | 4.85 | -0.15 | 63.5 | +0.4 | 5 | 0.7 | 7500 | 12.60 | 64.82 | -0.50 | 1.90 | +0.3 |
| 72 | 1.70 | -0.1 | 4.85 | -0.15 | 67.5 | +0.4 | 5 | 0.7 | 7100 | 14.70 | 68.81 | -0.50 | 1.90 | +0.3 |
| 75 | 1.70 | -0.1 | 4.85 | -0.15 | 70.5 | +0.4 | 5 | 0.7 | 6700 | 15.30 | 71.83 | -0.50 | 1.90 | +0.3 |
| 80 | 1.70 | -0.1 | 4.85 | -0.15 | 75.5 | +0.4 | 5 | 0.7 | 6400 | 16.30 | 76.81 | -0.50 | 1.90 | +0.3 |
| 85 | 1.70 | -0.1 | 4.85 | -0.15 | 80.3 | +0.5 | 5 | 0.7 | 6100 | 17.50 | 81.81 | -0.50 | 1.90 | +0.3 |
| 90 | 2.46 | -0.1 | 4.85 | -0.15 | 85.3 | +0.5 | 5 | 0.7 | 17400 | 26.60 | 86.79 | -0.50 | 2.70 | +0.3 |
| 95 | 2.46 | -0.1 | 4.85 | -0.15 | 90.3 | +0.5 | 5 | 0.7 | 16400 | 28.20 | 91.82 | -0.50 | 2.70 | +0.3 |
| 100 | 2.46 | -0.1 | 4.85 | -0.15 | 95.3 | +0.5 | 5 | 0.7 | 15500 | 29.20 | 96.80 | -0.50 | 2.70 | +0.3 |
| 110 | 2.46 | -0.1 | 4.85 | -0.15 | 105.3 | +0.5 | 5 | 0.7 | 14300 | 32.80 | 106.81 | -0.50 | 2.70 | +0.3 |
| 115 | 2.46 | -0.1 | 4.85 | -0.15 | 108.6 | +0.5 | 5 | 0.7 | 13600 | 34.40 | 111.81 | -0.50 | 2.70 | +0.3 |
| 115* | 2.82 | -0.1 | 7.21 | -0.15 | 108.6 | +0.5 | 7 | 0.7 | 30100 | 56.80 | 110.20 | -0.50 | 3.10 | +0.3 |
| 120 | 2.82 | -0.1 | 7.21 | -0.15 | 113.6 | +0.5 | 7 | 0.7 | 29000 | 60.60 | 115.21 | -0.50 | 3.10 | +0.3 |
| 125 | 2.82 | -0.1 | 7.21 | -0.15 | 118.6 | +0.5 | 7 | 0.7 | 28000 | 63.00 | 120.22 | -0.50 | 3.10 | +0.3 |
| 130 | 2.82 | -0.1 | 7.21 | -0.15 | 123.5 | +0.6 | 7 | 0.7 | 27000 | 65.60 | 125.22 | -0.50 | 3.10 | +0.3 |
| 140 | 2.82 | -0.1 | 7.21 | -0.15 | 133.5 | +0.6 | 7 | 0.7 | 25000 | 70.60 | 135.23 | -0.50 | 3.10 | +0.3 |
| 145 | 2.82 | -0.1 | 7.21 | -0.15 | 138.5 | +0.6 | 7 | 0.7 | 24000 | 73.00 | 140.23 | -0.50 | 3.10 | +0.3 |
| 150 | 2.82 | -0.1 | 7.21 | -0.15 | 143.5 | +0.6 | 7 | 0.7 | 23500 | 77.20 | 145.24 | -0.50 | 3.10 | +0.3 |
| 160 | 2.82 | -0.1 | 7.21 | -0.15 | 153.5 | +0.6 | 7 | 0.7 | 22000 | 81.00 | 155.22 | -0.50 | 3.10 | +0.3 |
| 170 | 3.10 | -0.1 | 9.60 | -0.15 | 161.8 | +0.6 | 10 | 0.7 | 36000 | 122.00 | 163.65 | -0.50 | 3.50 | +0.3 |
| 180 | 3.10 | -0.1 | 9.60 | -0.15 | 171.8 | +0.6 | 10 | 0.7 | 34500 | 128.00 | 173.66 | -0.50 | 3.50 | +0.3 |
| 190 | 3.10 | -0.1 | 9.60 | -0.15 | 181.6 | +0.7 | 10 | 0.7 | 32800 | 139.00 | 183.64 | -0.50 | 3.50 | +0.3 |
| 200 | 3.10 | -0.1 | 9.60 | -0.15 | 191.6 | +0.7 | 10 | 0.7 | 31200 | 148.00 | 193.65 | -0.50 | 3.50 | +0.3 |
| 210 | 3.10 | -0.1 | 9.60 | -0.30 | 201.6 | +0.7 | 10 | 1.2 | 29800 | 156.00 | 203.60 | -0.50 | 3.50 | +0.3 |
| 215 | 3.10 | -0.1 | 9.60 | -0.30 | 206.6 | +0.7 | 10 | 1.2 | 28800 | 165.00 | 208.60 | -0.50 | 3.50 | +0.3 |
| 225 | 3.50 | -0.1 | 10.00 | -0.30 | 215.0 | +0.7 | 10 | 1.2 | 41400 | 195.00 | 217.00 | -0.50 | 4.50 | +0.4 |
| 230 | 3.50 | -0.1 | 10.00 | -0.30 | 220.0 | +0.7 | 10 | 1.2 | 40600 | 200.00 | 222.00 | -0.50 | 4.50 | +0.4 |
| 240 | 3.50 | -0.1 | 10.00 | -0.30 | 230.0 | +0.7 | 10 | 1.2 | 39200 | 208.00 | 232.00 | -0.50 | 4.50 | +0.4 |
| 250 | 3.50 | -0.1 | 10.00 | -0.30 | 240.0 | +0.7 | 10 | 1.2 | 37300 | 217.00 | 242.00 | -0.50 | 4.50 | +0.4 |
| 260 | 3.50 | -0.1 | 10.00 | -0.30 | 249.0 | +0.8 | 10 | 1.2 | 36200 | 226.00 | 252.00 | -0.50 | 4.50 | +0.4 |
| 270 | 3.50 | -0.1 | 10.00 | -0.30 | 259.0 | +0.8 | 10 | 1.2 | 34800 | 234.00 | 262.00 | -0.50 | 4.50 | +0.4 |
| 280 | 3.50 | -0.1 | 10.00 | -0.30 | 269.0 | +0.8 | 10 | 1.2 | 33500 | 243.00 | 272.00 | -0.50 | 4.50 | +0.4 |
| 290 | 3.50 | -0.1 | 10.00 | -0.30 | 279.0 | +0.8 | 10 | 1.2 | 32300 | 252.00 | 282.00 | -0.50 | 4.50 | +0.4 |
| 300 | 4.50 | -0.2 | 12.00 | -0.30 | 286.0 | +0.8 | 10 | 1.5 | 79500 | 394.00 | 290.00 | -0.50 | 5.50 | +0.5 |
| 310 | 4.50 | -0.2 | 12.00 | -0.30 | 296.0 | +0.8 | 10 | 1.5 | 77000 | 407.00 | 300.00 | -0.50 | 5.50 | +0.5 |
| 320 | 4.50 | -0.2 | 12.00 | -0.30 | 306.0 | +0.8 | 10 | 1.5 | 74700 | 420.00 | 310.00 | -0.50 | 5.50 | +0.5 |
| 340 | 4.50 | -0.2 | 12.00 | -0.30 | 326.0 | +0.9 | 10 | 1.5 | 70200 | 446.00 | 330.00 | -0.50 | 5.50 | +0.5 |
| 350 | 4.50 | -0.2 | 12.00 | -0.30 | 345.0 | +0.9 | 10 | 1.5 | 66000 | 473.00 | 350.00 | -0.50 | 5.50 | +0.5 |
| 370 | 4.50 | -0.2 | 12.00 | -0.30 | 355.0 | +0.9 | 10 | 1.5 | 64000 | 486.00 | 360.00 | -0.50 | 5.50 | +0.5 |
| 380 | 4.50 | -0.2 | 12.00 | -0.30 | 365.0 | +0.9 | 10 | 1.5 | 63000 | 498.00 | 370.00 | -0.50 | 5.50 | +0.5 |
| 400 | 4.50 | -0.2 | 12.00 | -0.30 | 385.0 | +0.9 | 10 | 1.5 | 60100 | 525.00 | 390.00 | -0.50 | 5.50 | +0.5 |
