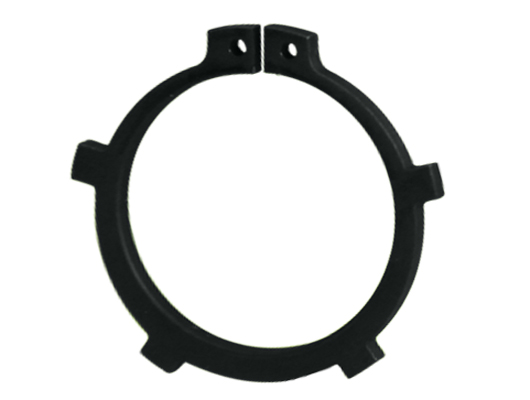

DIN 983
Product Descriptions
INDICATIVE NUMBER - DIN 983
APPLICATIONS :
Mechanical Engineering, Automotive Engineering, Gear Systems,Gear Boxes, Electrical engineering, Precision mechanics, Apparatus engineering, In spline shafts etc.

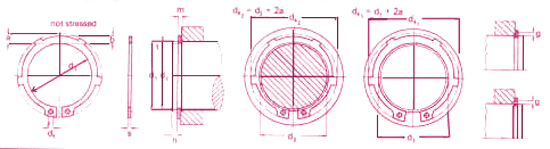

DIN 983
Shaft dia d1 |
s h 11 |
d3 |
Tolerance |
a |
b |
d5 |
Coefficient K (kg x mm) |
Weight (kg x 1,000) |
d2 |
Tolerance |
M mm dim. |
Ax.groove area Fp (mm2) |
17 |
1.00 |
15.70 |
- |
3.55 |
2.20 |
1.70 |
2160 |
0.930 |
16.20 |
-0.110 |
1.10 |
20.84 |
18 |
1.20 |
16.50 |
+0.100 |
3.65 |
2.70 |
1.70 |
3710 |
1.240 |
17.00 |
-0.110 |
1.30 |
27.50 |
19 |
1.20 |
17.50 |
-0.180 |
3.65 |
2.70 |
2.00 |
3640 |
1.350 |
18.00 |
-0.110 |
1.30 |
29.05 |
20 |
1.20 |
18.50 |
- |
3.75 |
2.70 |
2.00 |
3630 |
1.450 |
19.00 |
-0.150 |
1.30 |
30.60 |
22 |
1.20 |
20.50 |
+0.130 |
3.95 |
2.70 |
2.00 |
3540 |
1.770 |
21.00 |
-0.150 |
1.30 |
33.80 |
- |
- |
- |
-0.210 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
23 |
1.20 |
21.50 |
- |
4.00 |
2.70 |
2.00 |
3470 |
1.840 |
22.00 |
-0.150 |
1.30 |
35.40 |
24 |
1.20 |
22.20 |
+0.210 |
4.10 |
2.70 |
2.00 |
3340 |
1.980 |
22.90 |
-0.210 |
1.30 |
40.50 |
25 |
1.20 |
23.20 |
+0.210 |
4.20 |
3.10 |
2.00 |
3340 |
2.120 |
23.90 |
-0.210 |
1.30 |
42.30 |
26 |
1.20 |
24.20 |
+0.210 |
4.30 |
3.10 |
2.00 |
3290 |
2.180 |
24.90 |
-0.210 |
1.30 |
44.00 |
28 |
1.50 |
25.90 |
+0.210 |
4.45 |
3.10 |
2.00 |
6500 |
3.150 |
26.60 |
-0.210 |
1.60 |
60.00 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
29 |
1.50 |
26.90 |
+0.210 |
4.60 |
3.70 |
2.00 |
6400 |
3.350 |
27.60 |
-0.210 |
1.60 |
62.20 |
30 |
1.50 |
27.90 |
+0.210 |
4.65 |
3.70 |
2.00 |
6420 |
3.650 |
28.60 |
-0.210 |
1.60 |
64.40 |
32 |
1.50 |
29.60 |
+0.210 |
4.90 |
3.70 |
2.50 |
6180 |
4.000 |
30.30 |
-0.250 |
1.60 |
83.10 |
34 |
1.50 |
31.50 |
+0.210 |
5.00 |
3.70 |
2.50 |
6130 |
4.150 |
32.30 |
-0.250 |
1.60 |
88.30 |
35 |
1.50 |
32.20 |
+0.250 |
5.10 |
3.70 |
2.50 |
6010 |
4.380 |
33.00 |
-0.250 |
1.60 |
106.80 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
38 |
1.75 |
35.20 |
+0.250 |
5.40 |
4.70 |
2.50 |
9500 |
6.500 |
36.00 |
-0.250 |
1.85 |
116.10 |
40 |
1.75 |
36.50 |
+0.390 |
7.00 |
4.70 |
2.50 |
9695 |
7.000 |
37.50 |
-0.250 |
1.85 |
152.00 |
42 |
1.75 |
38.50 |
+0.390 |
7.00 |
4.70 |
2.50 |
9370 |
7.500 |
39.50 |
-0.250 |
1.85 |
160.00 |
45 |
1.75 |
41.50 |
+0.390 |
7.00 |
4.70 |
2.50 |
9100 |
8.500 |
42.50 |
-0.250 |
1.85 |
17200 |
47 |
1.75 |
43.50 |
+0.390 |
7.00 |
4.70 |
2.50 |
9070 |
8.700 |
44.50 |
-0.250 |
1.85 |
180.00 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
48 |
1.75 |
44.50 |
+0.390 |
7.00 |
4.70 |
2.50 |
9000 |
8.900 |
45.50 |
-0.250 |
1.85 |
184.00 |
50 |
2.00 |
45.80 |
+0.390 |
8.00 |
5.00 |
2.50 |
13330 |
11.550 |
47.00 |
-0.250 |
2.15 |
228.00 |
55 |
2.00 |
50.80 |
+0.460 |
8.00 |
5.50 |
2.50 |
13010 |
12.990 |
52.00 |
-0.300 |
2.15 |
252.00 |
57 |
2.00 |
52.80 |
+0.460 |
8.00 |
5.50 |
2.50 |
12880 |
14.000 |
54.00 |
-0.300 |
2.15 |
262.00 |
58 |
2.00 |
53.80 |
+0.460 |
8.00 |
5.50 |
2.50 |
12920 |
14.300 |
55.00 |
-0.300 |
2.15 |
266.00 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
60 |
2.00 |
55.80 |
+0.460 |
8.00 |
5.50 |
2.50 |
12635 |
14.800 |
57.00 |
-0.300 |
2.15 |
276.00 |
62 |
2.00 |
57.80 |
+0.460 |
8.00 |
5.50 |
2.50 |
12620 |
15.900 |
59.00 |
-0.300 |
2.15 |
285.00 |
65 |
2.50 |
60.80 |
+0.460 |
10.00 |
6.40 |
3.00 |
24500 |
21.700 |
62.00 |
-0.300 |
2.65 |
299.00 |
67 |
2.50 |
62.50 |
+0.460 |
10.00 |
6.40 |
3.00 |
24500 |
22.600 |
64.00 |
-0.300 |
2.65 |
308.00 |
68 |
2.50 |
63.50 |
+0.460 |
10.00 |
6.40 |
3.00 |
24400 |
23.500 |
65.00 |
-0.300 |
2.65 |
313.00 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
70 |
2.50 |
65.50 |
+0.460 |
10.00 |
6.40 |
3.00 |
24100 |
25.100 |
67.00 |
-0.300 |
2.65 |
323.00 |
75 |
2.50 |
70.50 |
+0.460 |
10.00 |
7.20 |
3.00 |
23400 |
28.200 |
72.00 |
-0.300 |
2.65 |
346.00 |
80 |
2.50 |
74.50 |
+0.460 |
10.00 |
7.20 |
3.00 |
23630 |
30.750 |
76.50 |
-0.300 |
2.65 |
430.00 |
85 |
3.00 |
79.50 |
+0.460 |
10.00 |
8.00 |
3.50 |
40500 |
39.500 |
81.50 |
-0.540 |
3.15 |
457.00 |
90 |
3.00 |
84.50 |
+0.540 |
10.00 |
8.00 |
3.50 |
40100 |
47.700 |
86.50 |
-0.540 |
3.15 |
485.00 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
95 |
3.00 |
89.50 |
+0.540 |
10.00 |
8.80 |
3.50 |
40000 |
53.000 |
91.50 |
-0.540 |
3.15 |
513.00 |
100 |
3.00 |
94.50 |
+0.540 |
10.00 |
8.80 |
3.50 |
39700 |
56.600 |
96.50 |
-0.540 |
3.15 |
540.00 |
110 |
4.00 |
103.00 |
+0.540 |
12.00 |
9.60 |
3.50 |
91400 |
84.600 |
106.00 |
-0.540 |
4.15 |
678.00 |
120 |
4.00 |
113.00 |
+0.540 |
14.00 |
10.60 |
3.50 |
88200 |
89.700 |
116.00 |
-0.540 |
4.15 |
741.00 |
140 |
4.00 |
133.00 |
+0.630 |
14.00 |
10.60 |
4.00 |
84000 |
115.000 |
136.00 |
-0.630 |
4.15 |
867.00 |
